Highlights
To increase production capacity
A source that moves along with the moving axis
Work even faster

Ultra 3000S

From

The Ultra 3000S has been designed for maximum cutting performance. Featuring servo drive, optimised mechanics and an optional 300 W laser source, this machine offers unrivalled speed, precision and consistency – the professional cutting solution for production environments.

We mainly supply businesses and educational institutions.

Excellent
4.3 out of 5 based on 102 reviews

Request a quote with no obligation.

Request a quote

Features

The BRM Ultra 3000S has been developed for pure cutting performance. This machine combines industrial precision with maximum speed thanks to a fully servo-controlled system, spindle drive instead of belts, and an optical design with a constant beam path. The mirrors are water-cooled for thermal stability, ensuring that cutting quality remains exceptionally consistent even during prolonged use. The 3000S can be fitted with a powerful 300 W laser source, allowing you to process thicker materials with ease and achieve higher production speeds. Every Ultra 3000S comes with our BRM quality checklist, a water cooler, three filterless extraction units, LightBurn software, a maintenance kit, an instruction manual and two lenses. A complete system that is immediately ready for intensive production and maximum precision with every cut.

We mainly supply businesses and educational institutions.

Technical specifications
Working area (WxDxH)
1500 × 3000 × 30 mm
Dimensions (WxDxH)
2225 × 4445 × 2135 mm
Weight
1,400 kg
Electrical load
3 ~ 230 VAC, 50 Hz, max. 9.6 kW (3 x 16 A)
Connection options
USB cable, USB stick, network, interlock connector
Climate
17–23 °C, 50–60 %
Laser class
Laser class 4
Laser power
130–160 W / 280–300 W
Accuracy
Cut to 0.1 mm*
Maximum cutting capacity (at optimum power)
12–85%
Attached image
63.5 mm and 101.6 mm
Maximum machining speed
300 mm/s
Max. acceleration
1000 mm/s²
Engine type
Servo motors
Encoder accuracy
23-bit
Tracking system
Ball screw on the X-axis, rack and pinion on the Y-axis
Mirror cooling
Water-cooled
Other standard features
135 W air pump | Maintenance kit | User manual
Show more
Show less
Extras
filtration system
BRM Extractor XXXL + M, replacement filters: – Pre-filters (3 pieces) €1,145.25 – Combination filters (3 pieces) €1,596.25
€16,345.00
Acrylic cutting grid
These grids (600 x 1210 mm) ensure reflection-free cutting.
€75
Workbench

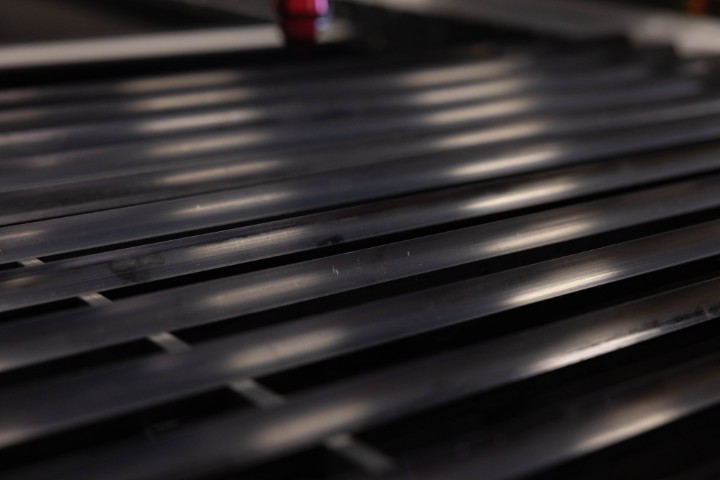

Louvered table
Show more
Show less

Ultra 3000S

images

Ultra 3000S
1
/
4

Ultra 3000S
2
/
4

Ultra 3000S
3
/
4

Ultra 3000S
4
/
4

No items found.
Hoge accuraatheid Icoon
Edit a wide range of materials
Tijdbesparing icoon
Work faster, deliver faster
Geen nabewerking nodig icoon
No post-processing required
Restmateriaal icoon
Avoid cutting waste
Oranje blob

Whatever you can imagine, you can create.

Applications

With a user-friendly BRM laser machine, you can cut and engrave a wide variety of materials.

From wood to plastics and from textiles to cardboard. And that’s not all. What would you like to make? With our machine, you can make it happen.

Our areas of expertise

Acrylic
Glass
Hardboard
Wood
Cardboard
Plastic
Learn
Metals
Natural stone
Paper
Plexiglas
Polystyrene & expanded polystyrene
Polycarbonate
Rubber
Mirror
Foam
Textiles
Options and materials
De BRM Lasermachine in een fablap

Want to test your equipment?

We’d be happy to help you test your equipment free of charge. Drop by for a demonstration and we’ll let you know the results, the optimal speed and the settings.
Request a demonstration

Materials that can be worked

Materials that can be worked
Cutting
Engraving
Acrylic, Plexiglas, PMMA
Coated metal (painted, anodised)
Glass and mirrors
Wood
Cardboard and hardboard
Ceramics and porcelain
Cork
Learn
MDF
Metal (polished)
Plywood
Natural stone, granite and marble
Gaskets
Paper
Polyester
Polypropylene
Polystyrene
PVC and PVC-containing plastics
Textiles
Trespa
Show more
Show less
Can be processed using our machines.
Requires laser spray to create a clear marking.
Contains toxic substances and cannot be processed using our machines.
Download our free brochure for more information!

A personalised approach

Have you ever considered adding a BRM laser to your premises? Let’s sit down together to come up with a solution that perfectly meets your specific needs and requirements.

Eric
Slotboom

Laser Machine Consultant

Checkbox vinkje icoon

Dutch-designed

Checkbox vinkje icoon

Affordable

Checkbox vinkje icoon

Impeccable quality

Checkbox vinkje icoon

Quick and decisive

Checkbox vinkje icoon

Always personal

About our machines.

The best you can get

Are you ready to take the next step? We supply user-friendly laser machines that will take your products and organisation to the next level. Cut and engrave a wide range of materials quickly and with extreme precision. Avoid material waste and save time, as no post-processing is required. Increase your production capacity and achieve your growth targets with a laser that meets all your needs.

We mainly supply businesses and educational institutions.

Series

Ultra 3000S

The Ultra 3000S has been designed for maximum cutting performance. Featuring servo drive, optimised mechanics and an optional 300 W laser source, this machine offers unrivalled speed, precision and consistency – the professional cutting solution for production environments. versatile, as it allows you to work with both small and large materials with ease. This size is perfect for medium to large workshops.

Series

Ultra 2500

Thanks to its large working area, the Ultra 2500 is suitable for large standard sheet materials. Perfect for manufacturing companies and plastics fabricators.

Series

Slim 900

The Slim 900 is ideal for schools offering courses in media, design and technology. Students learn to design and produce 2D and 3D items.

Series

Pro 1600

De Pro 1600 combineert de veiligheid van een gesloten laser met de grootte van een productiemachine. Hij is daardoor ideaal voor grote werkplaatsen en productiebedrijven.

Series

Slim 600

De Slim 600 is de kleinste machine in deze serie. Daardoor is het de perfecte basislaser voor hobbyisten en kleine bedrijven.

Series

Slim 1300

De Slim 1300 heeft het best verkochte formaat. Hij is ideaal voor starters of makerspaces omdat je gemakkelijk kunt wisselen tussen grote en kleine items.

Series

Slim 1600

De Slim 1600 heeft het best verkochte formaat. Hij is ideaal voor starters of makerspaces omdat je gemakkelijk kunt wisselen tussen grote en kleine items.

Series

Pro 900

De Pro 900 is de middenmoter qua maat. Met deze professionele CO2 laser snijd en graveer je kleine tot middelgrote projecten.

Series

Ultra 3000S

De Ultra 3000S is ontworpen voor maximale snijprestaties. Met servo-aandrijving, geoptimaliseerde mechanica en een optionele 300 W laserbron levert deze machine ongeëvenaarde snelheid, precisie en consistentie, dé professionele snijoplossing voor productieomgevingen.

Series

Pro 600

De Pro 600 is klein van stuk maar levert grootse prestaties. Voor dit compacte formaat is overal een plek te vinden.

Series

Ultra 3000

De Ultra 3000 is onze grootste allround CO₂-laser. Door het enorme werkoppervlak is deze machine perfect om de productiecapaciteit verder op te schalen en veelzijdig te blijven in materiaal- en toepassingskeuze.
Oranje blob

Frequently Asked Questions

How do I choose the best BRM laser for my application?

If you answer three questions, it will be much easier for you to make a decision. What materials will you be working with? What will you mainly be doing? (Cutting, engraving, or both in equal measure.) What kind of work surface do you need? Once you’ve clarified these points, we’ll provide you with tailored advice to help you find the best option.

What materials can I process using a BRM laser?

With a BRM laser, you can quickly and effortlessly cut or engrave a wide range of organic materials. From acrylic to hardboard, from wood to textiles and more! The possibilities are virtually endless. Not sure if your material is suitable? Then let us test it for you. We’ll do it free of charge. That way, you’ll know straight away whether your application is possible.

What can't I cut with a laser machine?

A laser can be used for a wide range of applications, but there are exceptions. When processing certain materials, such as PVC, harmful substances are released that can be detrimental to health and may damage the machine. We therefore advise against using these materials. If in doubt, always ask the manufacturer for the exact composition so that you can be sure the material is suitable.
