Highlights
To increase production capacity
A source that moves along a mobile axis
2-year full warranty

Ultra 3000

From

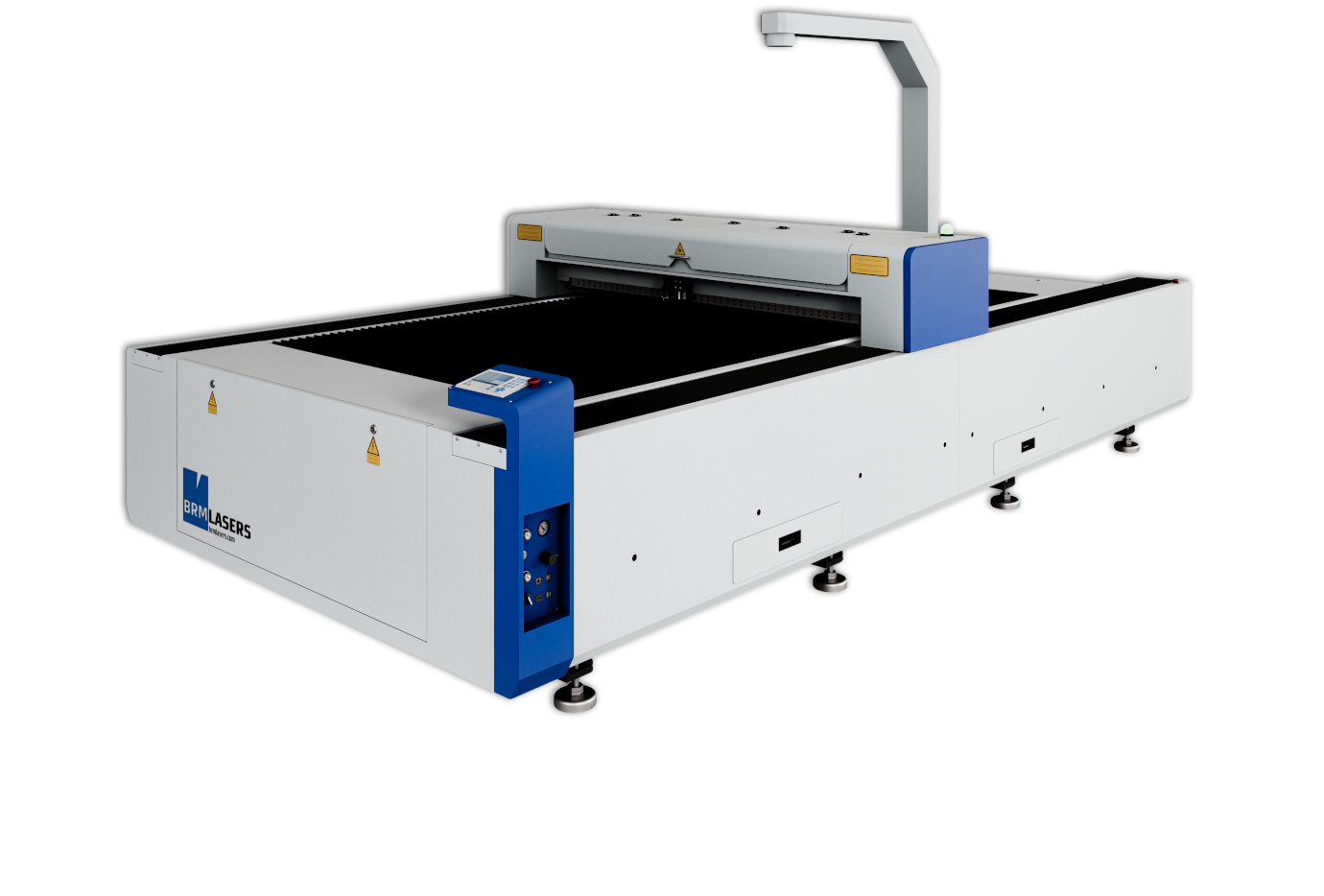

The Ultra 3000 is our largest all-round CO₂ laser. Thanks to its enormous working area, this machine is ideal for further scaling up production capacity whilst maintaining versatility in terms of material and application choice.

We mainly supply businesses and educational institutions.

Excellent
4.3 out of 5 based on 102 reviews

Request a quote with no obligation.

Request a quote

Features

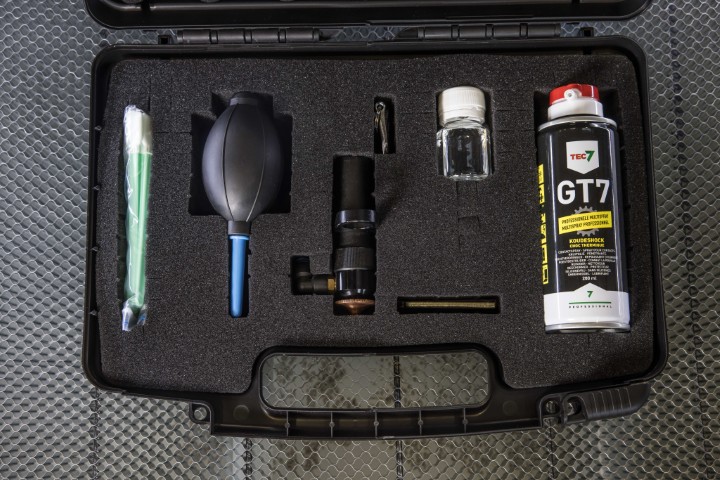

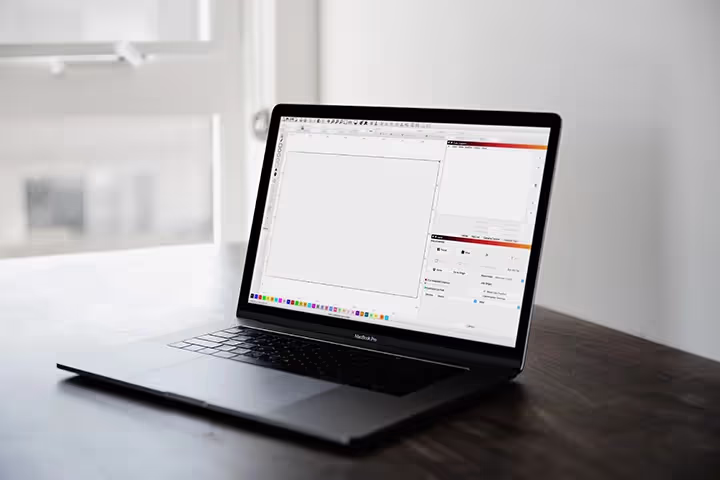

The BRM Ultra 3000 is the ultimate all-round CO₂ laser for manufacturing companies looking to scale up without compromising on precision or reliability. With a working area of 3000 × 1500 mm, this machine accommodates large sheets and batch production, whilst its stable construction and precise drive system ensure consistent cutting quality, even at high speeds. The Ultra series is designed for maximum service life and easy maintenance, so you can rely on consistent output day in, day out. The robust design and advanced control system make the Ultra 3000 suitable for a wide range of materials — from wood and plastic to acrylic and textiles. The machine comes as standard with our BRM quality checklist, a water cooler, three non-filtering extractors, LightBurn software, a maintenance kit, a manual and two lenses. Everything you need to get started professionally straight away.

We mainly supply businesses and educational institutions.

Technical specifications
Working area WxDxH
1500 x 3000 x 30 mm
Dimensions WxDxH
2225 x 4445 x 2135 mm
Weight
1,400 kg
Electrical load
3 ~ 230 VAC, 50 Hz, max 9.6 kW (3 x 16 A)
Connectivity options
USB cable, USB stick, network, interlock connector
Climate
17–23°C, 50–60%
Laser class
Laser class 4
Laser pointer
650 nm, <5 mW
Laser power
100–130 W / 130–160 W
Accuracy
0.1 mm cutting, 420 dpi engraving*
Maximum cutting capacity (at optimum power)
12–85%
Attached optics
63.5 mm and 101.6 mm
Maximum machining speed
1000 mm/s X-axis, 300 mm/s Y-axis, 100 mm/s Maximum recommended cutting speed
Maximum acceleration
8000 mm/s² on the X-axis, 1000 mm/s² on the Y-axis
Engine type
Stepper motor (X-axis), servo motors (Y-axis)
Encoder accuracy
23-bit
Positioning system
Toothed belt on the X-axis, rack and pinion on the Y-axis
Mirror cooling
Passively cooled
Additional standard equipment
135 W air pump | Maintenance kit | Instruction manual
Show more
Show less
Extras
Filter unit

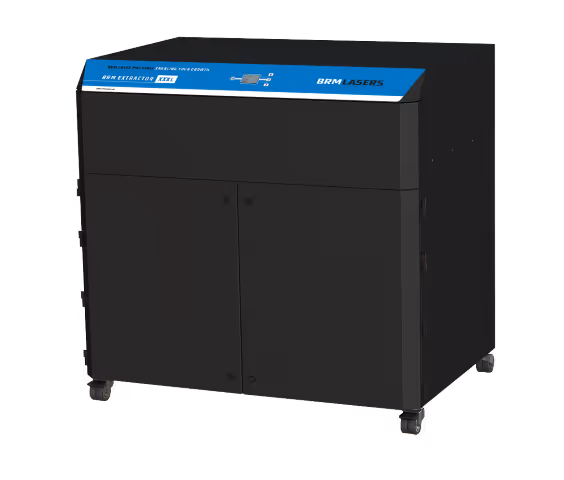

BRM Extractor XXXL + Replacement Filters: – Pre-filters (3 pcs.) €1,145.25 – Combined filters (3 pcs.) €1,596.25
€16,345.00
Acrylic cutting grid
These grilles (600 x 1210 mm) ensure glare-free cutting.
€75.00
Show more
Show less

Ultra 3000

images

Ultra 3000
1
/
4

Ultra 3000
2
/
4

Ultra 3000
3
/
4

Ultra 3000
4
/
4

No items found.
Hoge accuraatheid Icoon
Edit a wide range of materials
Tijdbesparing icoon
Work faster, deliver faster
Geen nabewerking nodig icoon
No post-processing required
Restmateriaal icoon
Avoid cutting waste
Oranje blob

Whatever you can imagine, you can create.

Applications

With a user-friendly BRM laser machine, you can cut and engrave a wide variety of materials.

From wood to plastics and from textiles to cardboard. And that’s not all. What would you like to make? With our machine, you can make it happen.

Our areas of expertise

Acrylic
Glass
Hardboard
Wood
Cardboard
Plastic
Learn
Metals
Natural stone
Paper
Plexiglas
Polystyrene & expanded polystyrene
Polycarbonate
Rubber
Mirror
Foam
Textiles
Options and materials
De BRM Lasermachine in een fablap

Want to test your equipment?

We’d be happy to help you test your equipment free of charge. Drop by for a demonstration and we’ll let you know the results, the optimal speed and the settings.
Request a demonstration

Materials that can be worked

Materials that can be worked
Cutting
Engraving
Acrylic, Plexiglas, PMMA
Coated metal (painted, anodised)
Glass and mirrors
Wood
Cardboard and hardboard
Ceramics and porcelain
Cork
Learn
MDF
Metal (polished)
Plywood
Natural stone, granite and marble
Gaskets
Paper
Polyester
Polypropylene
Polystyrene
PVC and PVC-containing plastics
Textiles
Trespa
Show more
Show less
Can be processed using our machines.
Requires laser spray to create a clear marking.
Contains toxic substances and cannot be processed using our machines.
Download our free brochure for more information!

A personalised approach

Have you ever considered adding a BRM laser to your premises? Let’s sit down together to come up with a solution that perfectly meets your specific needs and requirements.

Eric
Slotboom

Laser Machine Consultant

Checkbox vinkje icoon

Dutch-designed

Checkbox vinkje icoon

Affordable

Checkbox vinkje icoon

Impeccable quality

Checkbox vinkje icoon

Quick and decisive

Checkbox vinkje icoon

Always personal

About our machines.

The best you can get

Are you ready to take the next step? We supply user-friendly laser machines that will take your products and organisation to the next level. Cut and engrave a wide range of materials quickly and with extreme precision. Avoid material waste and save time, as no post-processing is required. Increase your production capacity and achieve your growth targets with a laser that meets all your needs.

We mainly supply businesses and educational institutions.

Series

Ultra 3000

The Ultra 3000 is our largest all-round CO₂ laser. Thanks to its enormous working area, this machine is ideal for further scaling up production capacity whilst maintaining versatility in terms of material and application choice. versatile, as it allows you to work with both small and large materials with ease. This size is perfect for medium to large workshops.

Series

Ultra 2500

Thanks to its large working area, the Ultra 2500 is suitable for large standard sheet materials. Perfect for manufacturing companies and plastics fabricators.

Series

Slim 900

The Slim 900 is ideal for schools offering courses in media, design and technology. Students learn to design and produce 2D and 3D items.

Series

Pro 1600

De Pro 1600 combineert de veiligheid van een gesloten laser met de grootte van een productiemachine. Hij is daardoor ideaal voor grote werkplaatsen en productiebedrijven.

Series

Slim 600

De Slim 600 is de kleinste machine in deze serie. Daardoor is het de perfecte basislaser voor hobbyisten en kleine bedrijven.

Series

Slim 1300

De Slim 1300 heeft het best verkochte formaat. Hij is ideaal voor starters of makerspaces omdat je gemakkelijk kunt wisselen tussen grote en kleine items.

Series

Slim 1600

De Slim 1600 heeft het best verkochte formaat. Hij is ideaal voor starters of makerspaces omdat je gemakkelijk kunt wisselen tussen grote en kleine items.

Series

Pro 900

De Pro 900 is de middenmoter qua maat. Met deze professionele CO2 laser snijd en graveer je kleine tot middelgrote projecten.

Series

Ultra 3000S

De Ultra 3000S is ontworpen voor maximale snijprestaties. Met servo-aandrijving, geoptimaliseerde mechanica en een optionele 300 W laserbron levert deze machine ongeëvenaarde snelheid, precisie en consistentie, dé professionele snijoplossing voor productieomgevingen.

Series

Pro 600

De Pro 600 is klein van stuk maar levert grootse prestaties. Voor dit compacte formaat is overal een plek te vinden.

Series

Ultra 3000

De Ultra 3000 is onze grootste allround CO₂-laser. Door het enorme werkoppervlak is deze machine perfect om de productiecapaciteit verder op te schalen en veelzijdig te blijven in materiaal- en toepassingskeuze.
Oranje blob

Frequently Asked Questions

How do I choose the best BRM laser for my application?

By answering three questions, you can make that decision a lot easier. What materials will you be working with? What will you mainly be doing? (Cutting, engraving, or both in equal measure.) What size work surface do you need? Once you’ve worked this out, we’ll provide you with tailored advice to help you choose the very best option.

What materials can I process using a BRM laser?

A BRM laser helps you cut or engrave a wide range of organic materials quickly and effortlessly. From acrylic to hardboard, from wood to textiles and more! The possibilities are virtually endless. Not sure whether your specific material is suitable? Let us test it for you. We’ll do it free of charge. That way, you’ll know straight away whether your application is feasible.

What can’t I process using a laser machine?

Lasers are incredibly versatile, but there are exceptions. When processing certain materials, such as PVC, harmful fumes are released which can be hazardous to health and damage the machine. We therefore advise against using these materials. If in doubt, always ask the manufacturer for the exact composition so that you can be sure the material is suitable.
